Easy Hawk Handle Drilling Guide

Tried out this drilling guide on a 5/8" X 18" dowel yesterday, it worked better than expected.

[IMG][/IMG]

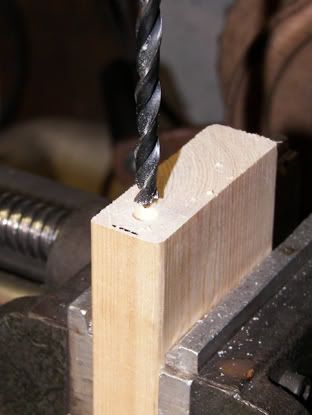

Drill a 1/4 inch hole with brad point drill, the piece of pine was held in a drill press vise.

[IMG][/IMG]

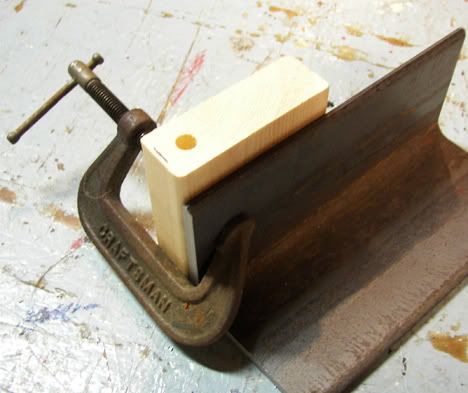

The wood could be clamped to angle iron if you don't have a drill vise.

[IMG][/IMG]

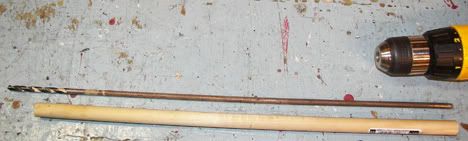

Here is the setup. The drill bit is a 1/4" X 12" bought years ago from Boeing Salvage, think I paid a couple bucks for it.

[IMG][/IMG]

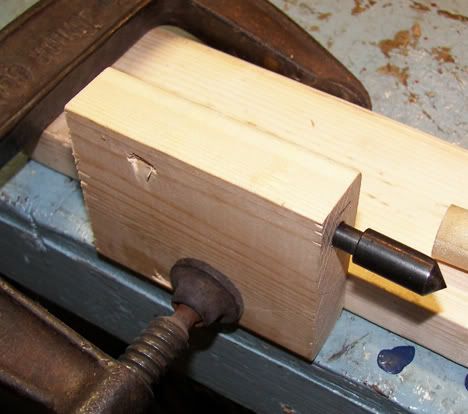

A small countersink with a 1/4" shank is used in this end, it spindles the dowel when drilling.

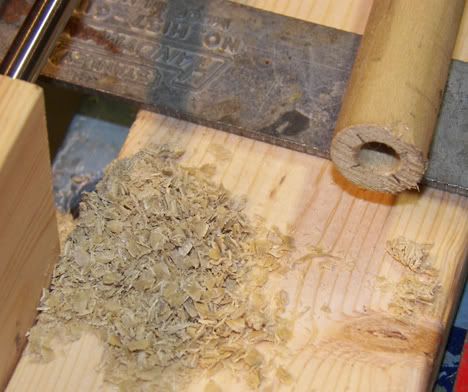

The drilled dowel.

The dowel was center drilled about 3/8" deep on both ends with a 1/4" brad point drill bit before drilling through the dowel. The dowel was reversed in the guide frequently and turned by hand about a half turn each time the drill was backed out to remove chips.


__________________
Happy Hammering, wear safety glasses.

Gene Chapman
Oak and Iron Publishing
www.oakandiron.com/

Last edited by Gene Chapman; 07-23-2007 at 02:10 PM.
Reply With Quote
  #2
Old 07-23-2007, 02:09 PM
B.Finnigan's Avatar
B.Finnigan B.Finnigan is offline
Living Legend

Join Date: Jun 2005
Location: Near Rainier WA
Posts: 1,986
That is a much more simple and easy to make drilling fixture then the one I posted over on the "Tool time" thread. Good idea and thanks for posting it!
Reply With Quote
  #3
Old 07-23-2007, 02:20 PM
Gene Chapman's Avatar
Gene Chapman Gene Chapman is offline
Hall of Famer

Join Date: Jun 2002
Location: Kingston, WA
Posts: 2,250
Thanks, the holes were out of alignment a bit in the middle so used this homemade drill welded to cold rolled steel to ream out the hole.

[IMG][/IMG]


__________________
Happy Hammering, wear safety glasses.

Gene Chapman
Oak and Iron Publishing
www.oakandiron.com/
Reply With Quote
  #4
Old 07-23-2007, 05:26 PM
Alan L's Avatar
Alan L Alan L is offline
Master

Join Date: Feb 2004
Location: Johnson City, Tennessee
Posts: 988
I think it's about time for me to beat myself over the head with my many ruined handles!

Thanks, Gene. I'll try that on the next handle I do.
Reply With Quote
  #5
Old 07-23-2007, 06:27 PM
Gene Chapman's Avatar
Gene Chapman Gene Chapman is offline
Hall of Famer

Join Date: Jun 2002
Location: Kingston, WA
Posts: 2,250

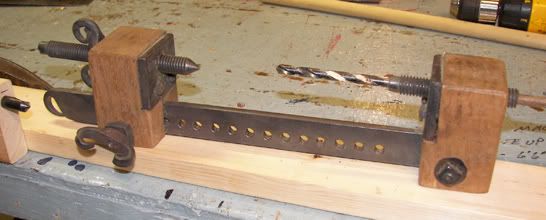

It is a version of a antler drill fixture made for one of my booklets in 1997, I were younger then.

It could be remade with a longer bar for hawk handles.

[IMG][/IMG]
